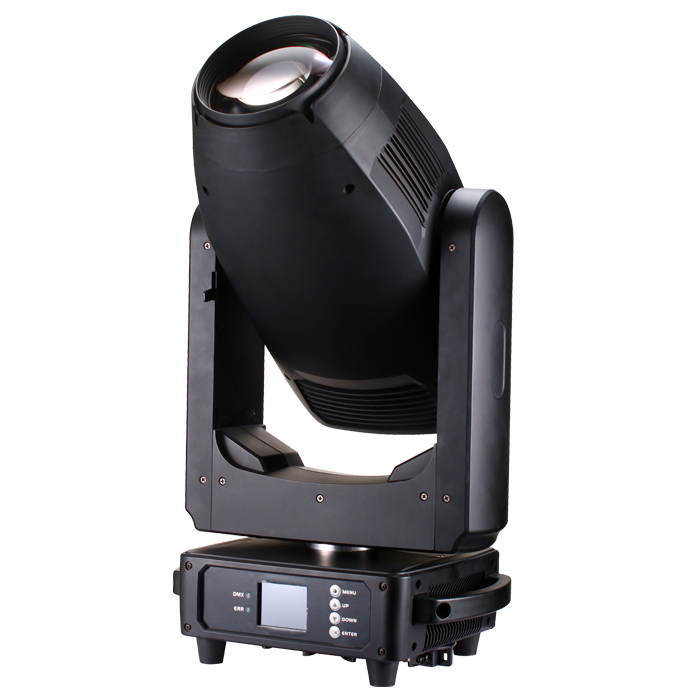

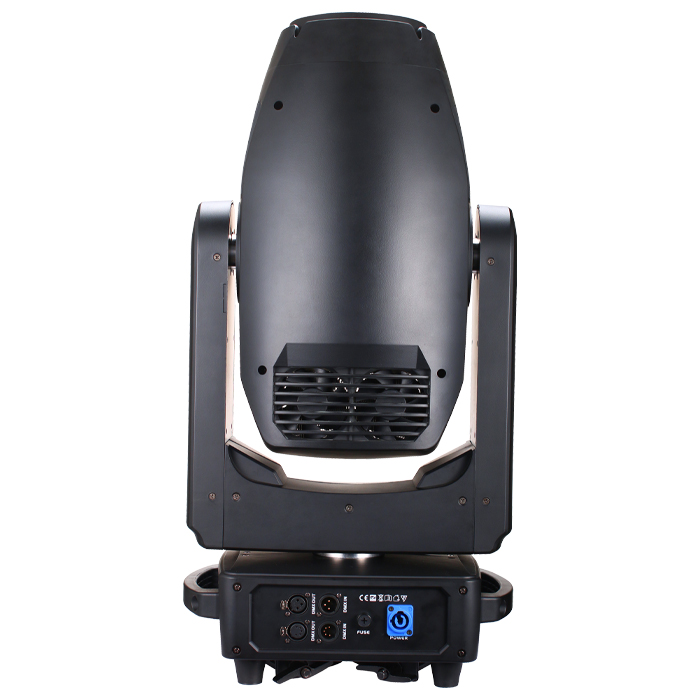

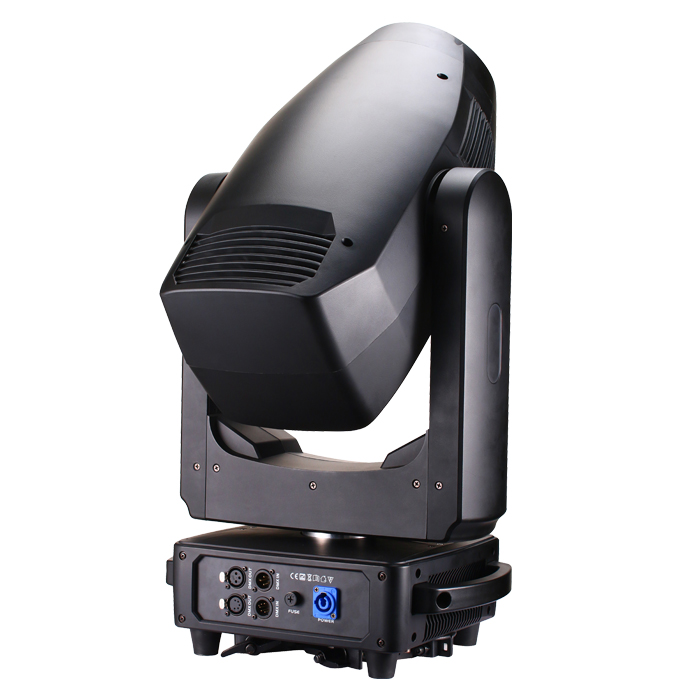

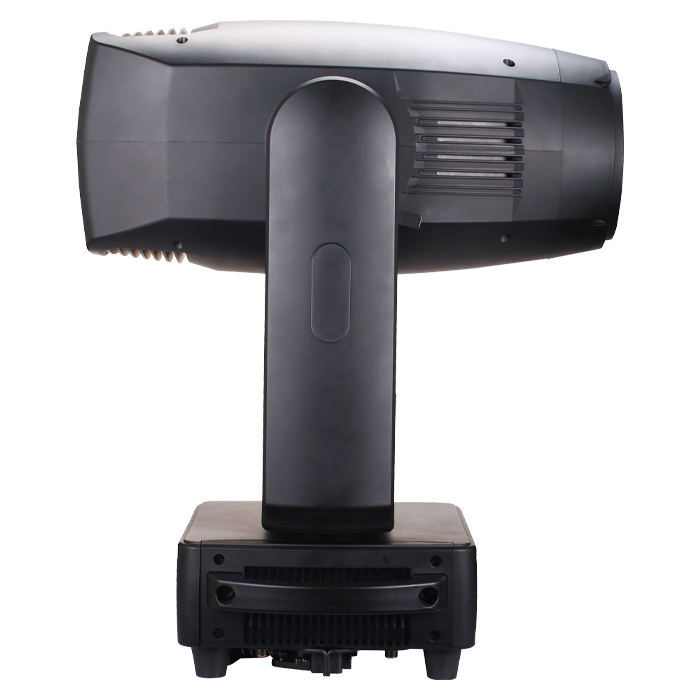

LED Moving Head Lights

SPL-LED-M700Profile

1.600W LED
2. 111,000lux at 5m & beam angle 4°
3. Motorized focus,frost filter, zoom, split color
4.2gobos wheel+1 color wheel +2 prisms overlay+CMY+CTO

Detailed Introduction

ELECTRICAL

Input power: AC100-240V

Power frequency: 50/60Hz

Power: 711W

Fuse:10A

LIGHT SOURCE

Source:600W LED

Average lifespan: 25000hours

COLOR SYSTEM

Color wheel:5 static colors +open

ELECTRONICS

Linear dimming: 0-100% Linear Dimmer

Strobe: 1-25Hz

OPTICS

Beam Angle:4-36°

Cooling method: fan cool

DYNAMIC EFFECTS

1Static gobo wheel: 7gobos plus open

1Glass Rotatable Gobo Wheel :7gobos plus open

Static color wheel: 5colors plus open +CTO+CMY

Prism 1: 6 rows of mirrors

prism 2: 4-facet rotating

CONTROL

DMX channels: 35CH

DMX connector: 3/5 Pin XLR input and output

Power connector: PowerCon input

Control mode: DMX/Master-Slave/Auto/Sound

Pan: 540º, 16 bits scanning

Tilt: 270º, 16 bits scanning

LCD touch display with 4 buttons

PHYSICAL

IP Rating:IP20

Case color: black

Max Temp: 45℃

Dimensions:360*252*712MM/14.2*9.9*28in

Weight:25kg/55.12lb
