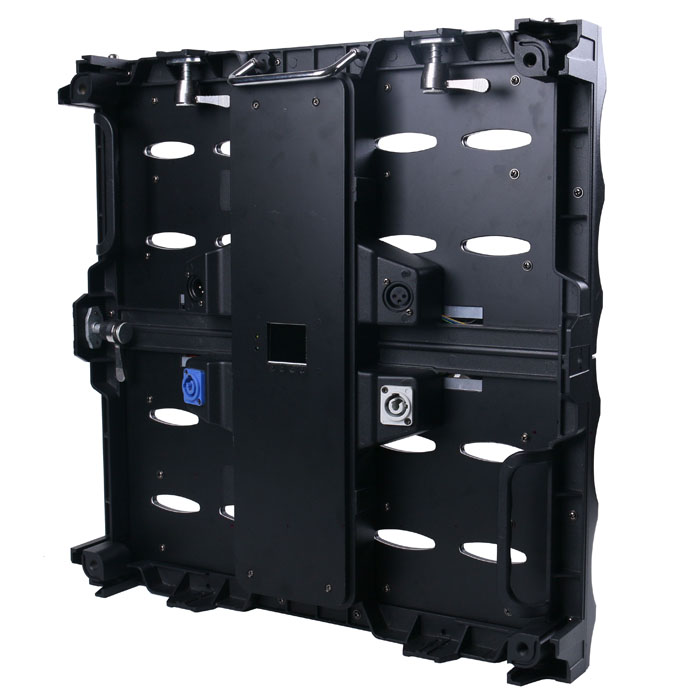

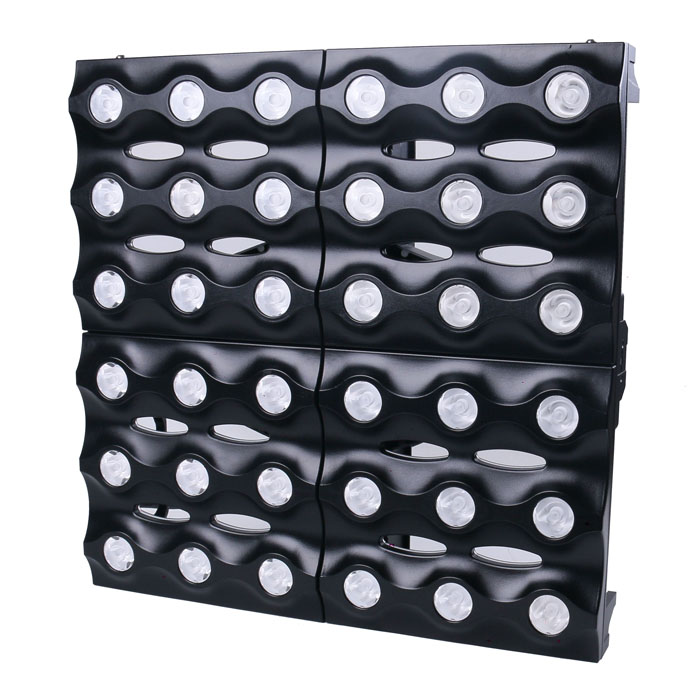

Matrix panel 5W RGBW
BST-365

Detailed

Power

Input voltage: AC100-240V 50/60Hz

Power consumption: 150W



Fixture

IP rating: IP20

Cooling method: fan cool

Max ambient temp: 45

Case color: black



Lamp

LED: Jingxing 5W RGBW 4in1 LED

LED QTY: 36pcs

Color temperature:8000K

Average lifespan:50,000 hours



Control

DMX channel: 16/41/144/160CH

DMX connector: 3Pin XLR input/output

Power connector: PowerCon input/output

Control mode: DMX/master-slave/auto/sound

6x6 pixels with single pixel control

Full color LCD display



Color effect

Color: RGBW color mixing

Beam angle: 4.5°

Dimming: 0-100%

Strobe: 0-25Hz

Lux @3m: 3,000Lux



Dimension

Product dimension:50x50x8cm

N.W: 7.5KG
