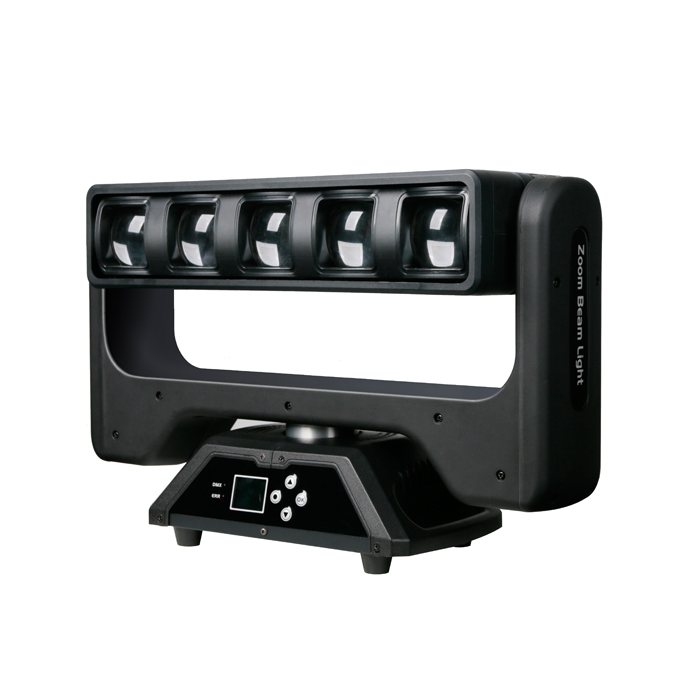

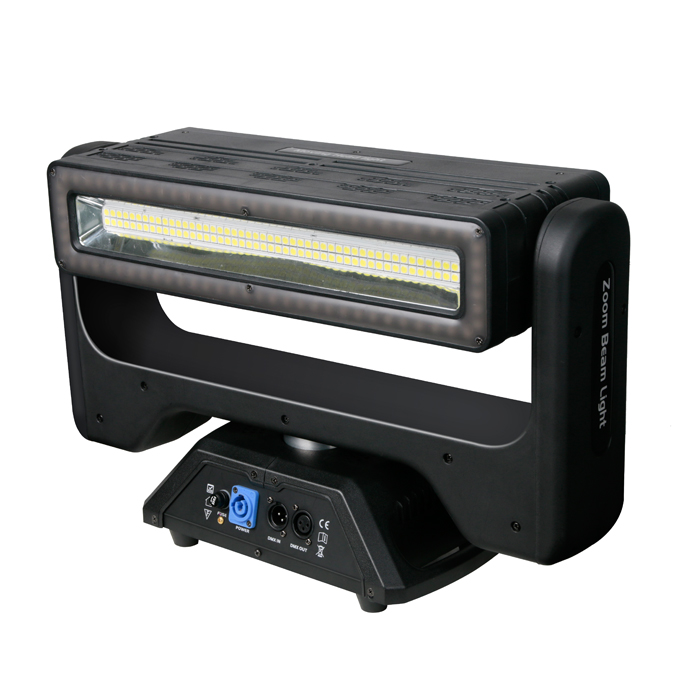

Due-side LED moving bar light beam+wash+blinder
SPL-LED-M560DF

Video

Detailed

Power

Input voltage: AC100-240V 50/60Hz

Power consumption: 480W

Fuse: 10A/250V,¢5*20

 Fixture

IP rating: IP20

Cooling method: fan cooling

Max ambient temp: 45℃

Case color: black

 LED

LED type 1: 5pcs 60W RGBW 4in1 LED for beam and wash

LED type 2: 96pcs 2W SMD7070 white LED ,12 segments

LED type 3: 72pcs 0.2W SMD5050 RGB 3in1 LED,36 segments

Average lifespan: 50,000 hours

 Control

DMX channel: 33/53/69/105 DMX channels

DMX connector: 3-pin input/output

Power connector: PowerCon input

Control mode: DMX/master-slave/sound/auto/RDM

Pan: 540˚+endless rotation 8/16 bits

Tilt: 270˚+endless rotation 8/16 bits

Reversible LCD display with 4 push buttons

Fan speed auto adjustment with head temperature

LED with temperature protection

Motorized zoom from 4 to 26˚

Single control to 60W LED

12 segments for 2W white LED

36 segments for 0.2W RGB Tri LED

Flicker free operation and high efficiency optical system

Color effect

Color: RGBW color mixing

Electronic Dimming: 0 - 100%

Strobe: 1-25Hz

Beam angle: 4-26˚

Lux at 5m: 3460 (full on at 3˚)

 Dimension

Product dimension:525x180x365mm

N. W: 12 KG
